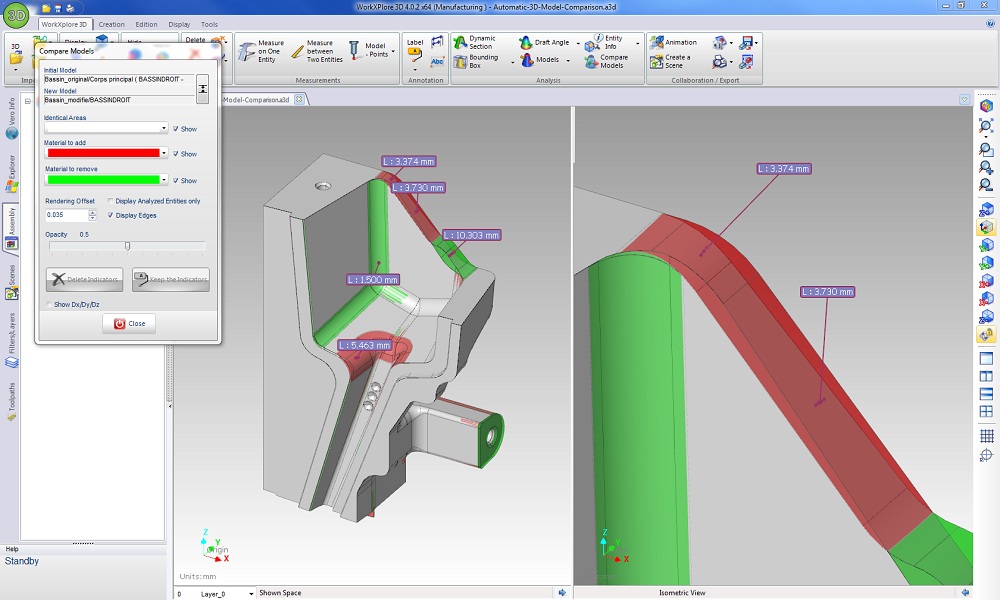

Automatic 3D model comparison

The Automatic comparison of 3D models function features a 3D graphic display of the difference between two versions of the same model. The modifications are clearly identifiable by color to distinguish material added from material removed.
By clicking on the model, the user can measure the difference in material between the two models.

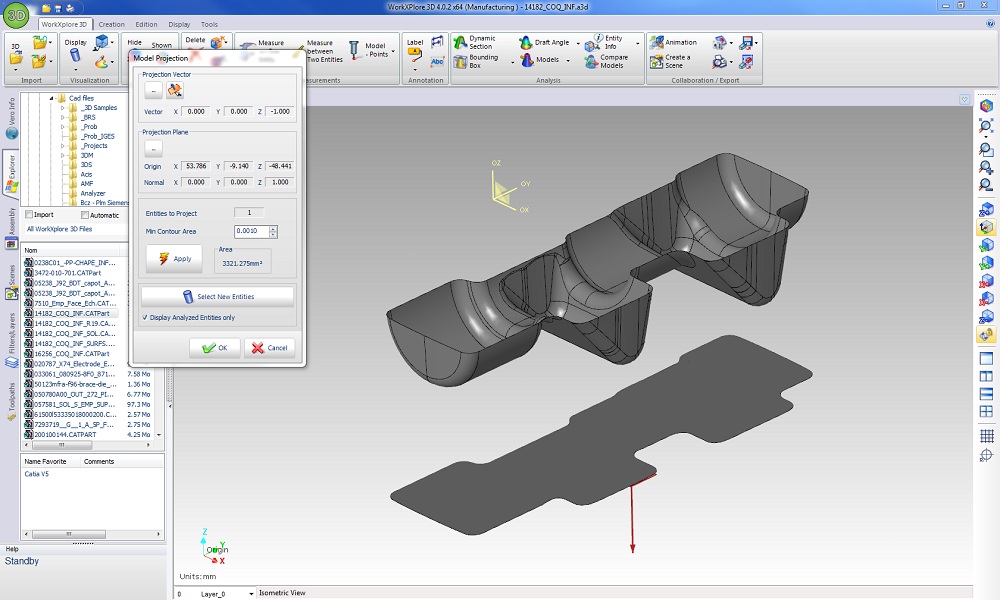

Projection of a 3D model

The projection of a 3D model for creating an object that represents a projected area of an element on one plane.

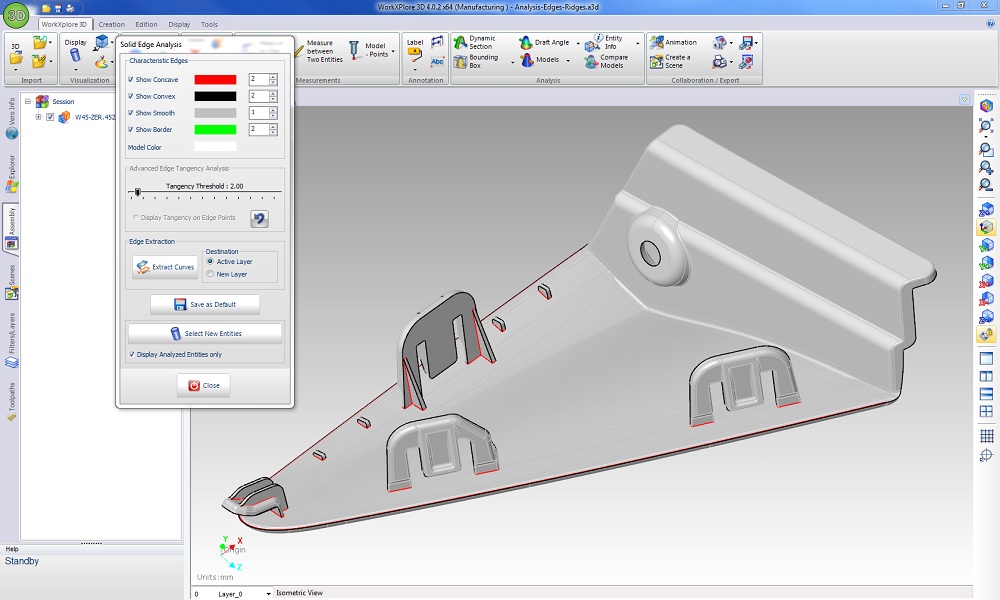

The analysis of edges and ridges

The analysis of edges and ridges enables sharp and tangent edges of a model to be identified and analyzed.
