Draft Angles

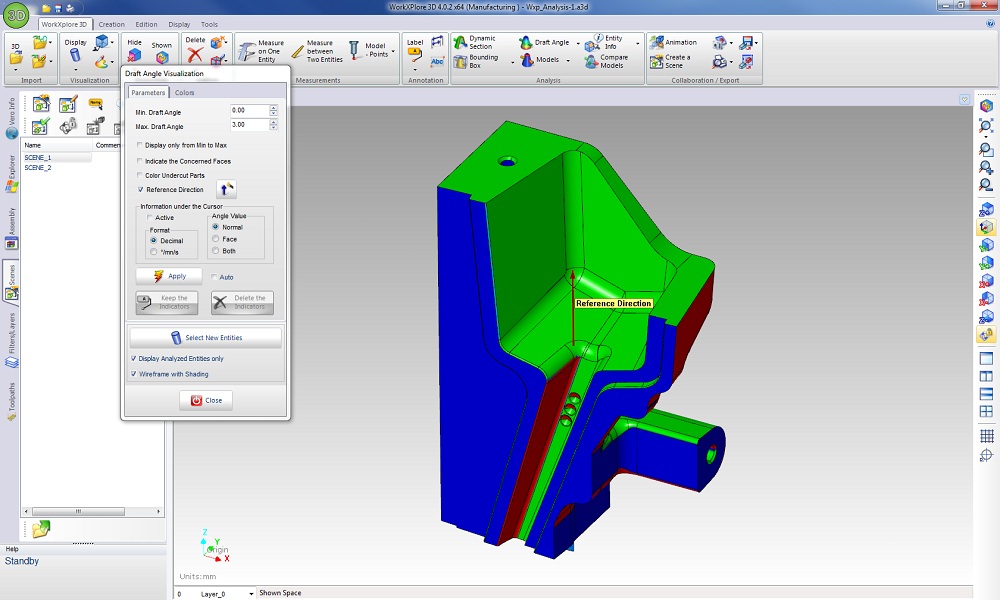

The calculation and display of drafts and undercuts are extremely quick, even on very big parts. WorkXplore automatically colors drafts and undercuts according to the mold stripping axis. Precize draft angle values are displayed dynamically as the mouse is dragged over the surfaces and can be inserted by default in the 3D model.



Curvature  Analysis

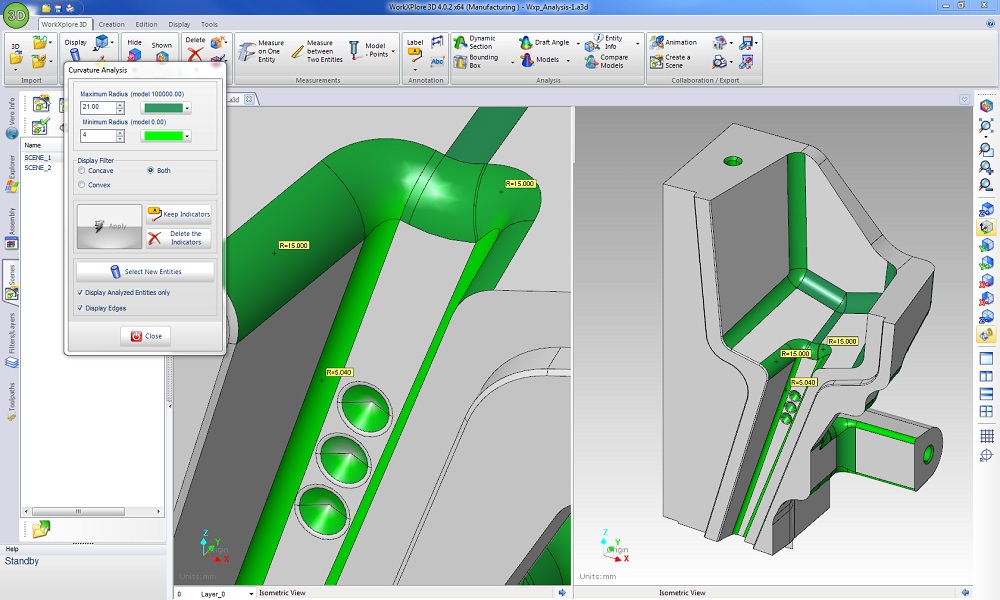

Curvature radius and plane face analysis is a valuable tool for users enabling fast cost and production time evaluation. The coloring of elements to be analyzed is automatic and users can insert measurement labels containing precize values of the elements selected.

With WorkXplore, the user can view only the concave radii, the convex radii, or both.




Plane face and Face type Analysis

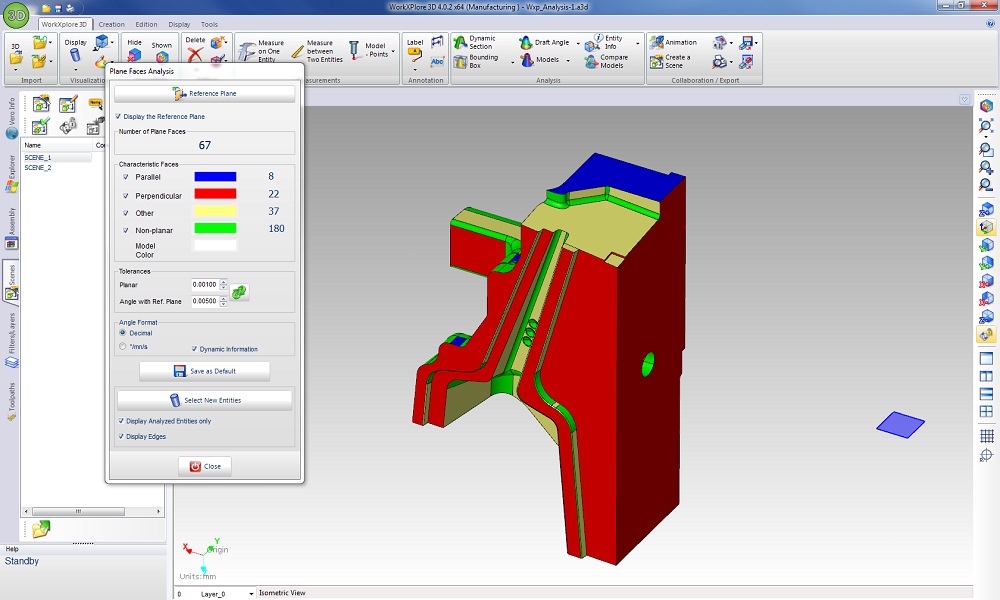

A new analysis procedure enables a model's face plane types (planes, cylinders, cones, tores, nurbs) to be analyzed.
